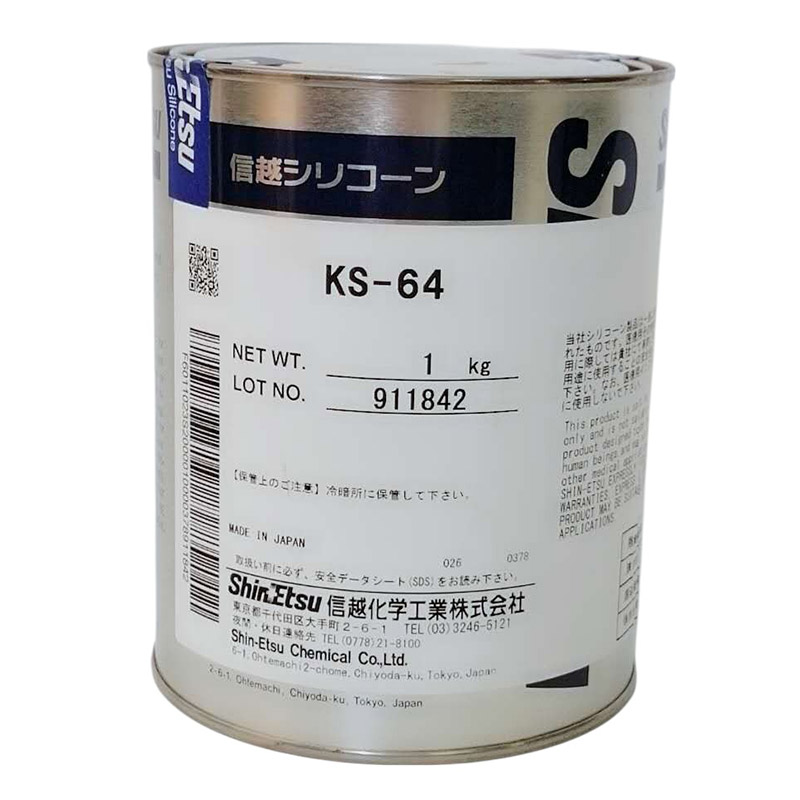

KS-64 is a general-purpose silicone-based lubricating compound developed by Shin-Etsu Chemical. Its main component is dimethyl silicone oil, and it is a white paste. It has excellent thermal stability, electrical insulation, and moisture resistance, and can maintain stable performance over a wide temperature range of -50°C to 200°C. Due to its low volatility and non-corrosive nature, users can enjoy a long-term, reliable lubrication experience during use without the need for frequent replacement or maintenance. For scenarios that require a combination of electrical protection and lubrication, KS-64 can simultaneously meet the smoothness of mechanical operation and electrical safety, providing a smooth and long-lasting user experience.

• Temperature Resistance - KS-64 can be used for extended periods within a temperature range of -50°C to 200°C, remaining stable even in high-temperature environments. Thermal aging tests show that after 500 hours of continuous operation at 200°C, its viscosity change is less than ±10%.




• Insulation - KS-64 demonstrates excellent electrical insulation performance, with a dielectric strength of 4.0 kV at a thickness of 0.1 mm and a dielectric constant of 2.8 at 60 Hz. These data demonstrate its ability to effectively prevent electrical breakdown and leakage, ensuring the safe operation of electrical components under high voltages.




• Thermal Conductivity - KS-64 has a thermal conductivity of 0.19 W/m·K, providing both lubrication and excellent heat dissipation. Application tests have shown that when used in motors and electronic components, temperature rise can be reduced by approximately 8%, which is crucial for extending equipment life.




• Moisture Resistance - KS-64 remains stable in hot and humid conditions. After 1000 hours in an environment of 85°C and 85% RH, its volume resistivity remains above 10¹³ Ω·cm. This demonstrates its ability to effectively prevent water vapor penetration and maintain excellent insulation and lubrication properties.




• Safe and Stable - KS-64 is a non-corrosive lubricant. After 500 hours of application on metal surfaces such as copper, aluminum, and stainless steel, no significant corrosion or discoloration is observed. It also exhibits exceptionally low volatility, with a volatile loss rate of only 0.1% over 24 hours at 200°C.

• Home Appliance Industry - KS-64 is widely used in home appliances, primarily for lubrication and protection of motor bearings, switches, and seals. Experimental results show that motor operating noise can be reduced by over 15% and switch life can be increased by 20%. Its excellent insulation properties also prevent current leakage, improving the safety and service life of home appliances. It is particularly suitable for long-duration equipment such as refrigerators, washing machines, and power tools.




• Automotive Industry - In automobiles, KS-64 is used in ignition systems, high-temperature seals, and electrical connectors. Salt spray tests have shown that its corrosion resistance in connectors can be extended to over 1,000 hours while ensuring stable electrical conduction. High- and low-temperature cycling tests have also proven that it can maintain its lubrication and sealing properties in temperatures ranging from -40°C to 150°C, ensuring reliable operation in complex environments.




• Construction Industry - KS-64 is commonly used in the construction industry for waterproofing, sealing, and protecting electrical devices. Its use in exterior wall insulation systems improves weather resistance by over 30%, effectively protecting against UV and moisture corrosion. Its excellent hydrophobicity also prevents water vapor penetration, thereby enhancing the protective capabilities of building structures. This is a significant advantage in large-scale infrastructure and buildings in high-humidity environments.




• General Industry - In industrial machinery and precision instruments, KS-64 performs dual functions as a lubricant and insulator. Tests have shown that when used in high-speed rotating equipment, it reduces the coefficient of friction by 20%, effectively reducing energy consumption. Furthermore, it maintains high resistance in electrical components, preventing the risk of short circuits. This makes it ideal for industrial production environments that require high reliability and long life, and is widely used in automation equipment and precision machining.
