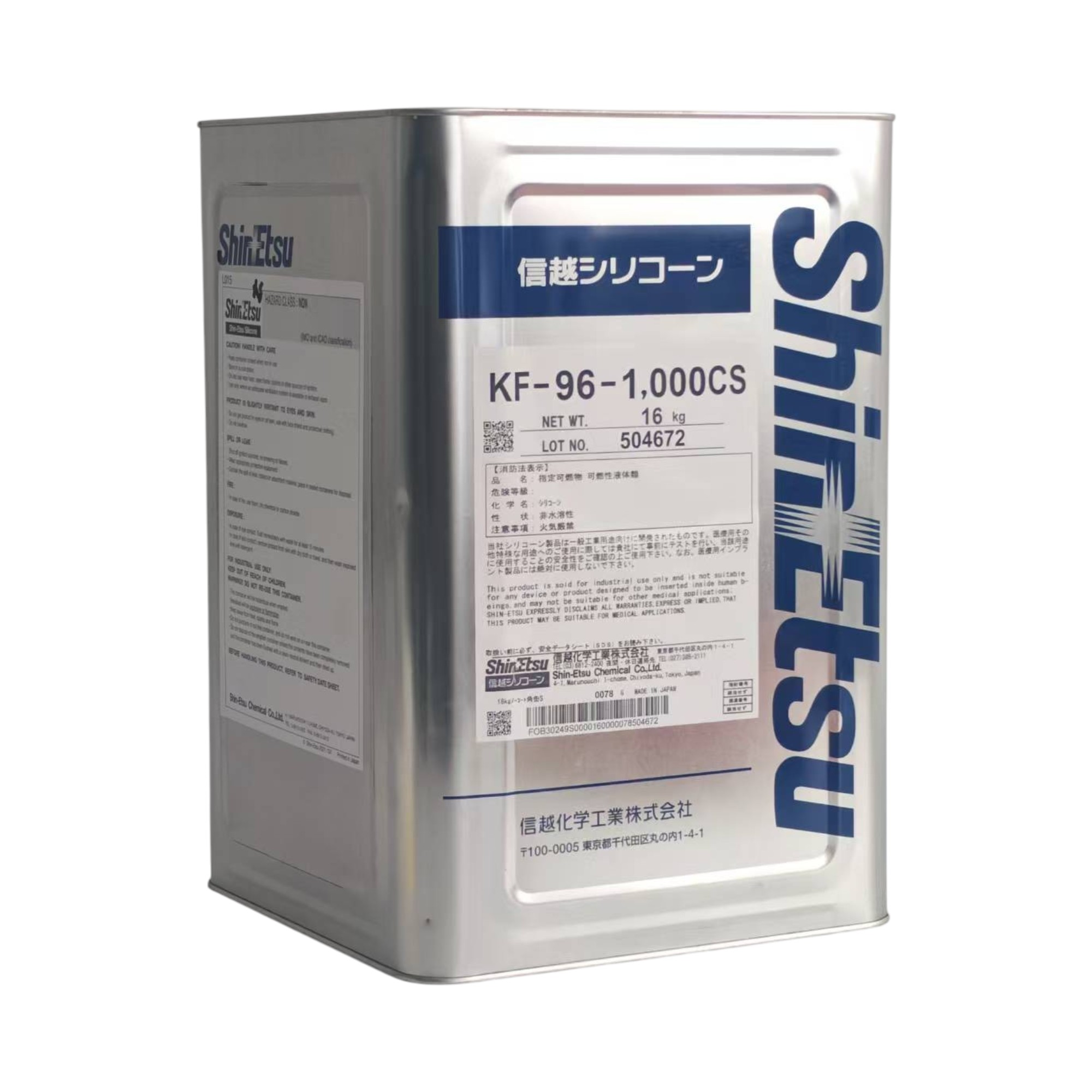

ShinEtsu KF-96-1000cs - Dimethyl Silicone Oil for General Use

ShinEtsu KF-96-1000cs - Dimethyl Silicone Oil for General Use

KF-96-1000cs is a polydimethylsiloxane polymer manufactured to yield essentially linear polymers in a wide range of average kinematic viscosities.
PRODUCTS DESCRIPTION

KF-96-1000cs is designed for a wide range of uses, including precision lubrication, cosmetic formulations, electronic component protection, and specialty bath oils. Its stable, non-reactive nature provides excellent heat resistance, low volatility, and outstanding water repellency. The oil offers smooth spreading, long-lasting lubrication, and compatibility with many materials, making it ideal for applications requiring durability, safety, and high performance.

PRODUCTS PARAMETERS

Product Name:Shinetsu KF-96-1000cs
Composition:Dimethyl Silicone Oil
Appearance:Colorless, Transparent Liquid
Viscosity:Approximately 1000 CSt (mm²/s) At 25 ℃
Specific Gravity:~0.970 At 25℃
Flash Point:>300 ℃(open Cup)
Temperature Resistance:Stable From –50 ℃ To ≥315 ℃

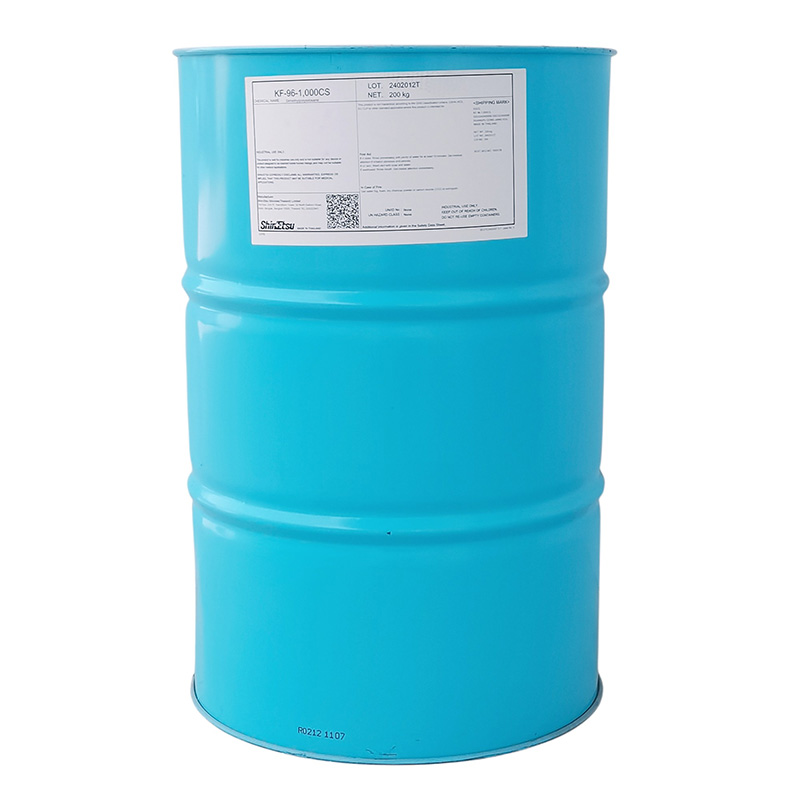

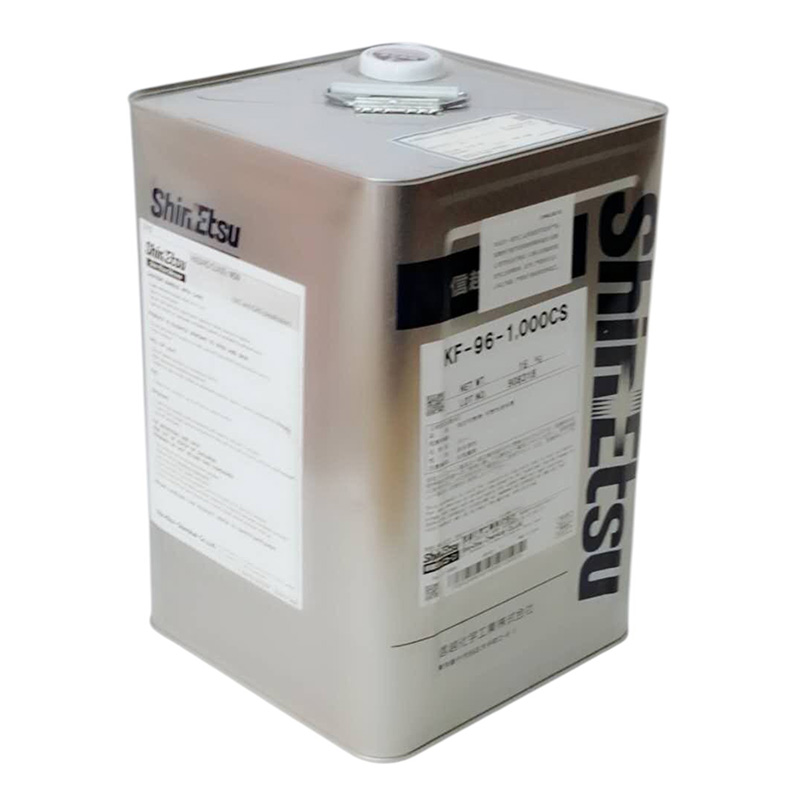

Packaging:Available In 1 Kg Cans, 16 Kg Cans, 200 Kg Drums

KEY FEATURES

  • Heat Resistance - The dimethyl-type KF-96-1000cs remains stable at temperatures up to 150 °C, while the methylphenyl variant can withstand even higher temperatures of up to 250 °C, making it suitable for high-temperature applications without degradation.


  • Viscosity Stability - This grade exhibits minimal viscosity change with temperature fluctuations. KF-96 and specifically the KF-96H series are recognized for offering the highest viscosity stability available, ensuring consistent performance under varying thermal conditions.


  • Thermal Properties - KF-96-1000cs has low thermal conductivity, approximately 1/4 of water, and a low specific heat—about 1/3 of water—making it an effective thermal insulation medium in various industrial and electronic applications.


  • Chemical Stability - KF-96-1000cs is inert to most acids and alkalis at room temperature and demonstrates strong resistance to corrosion when in contact with metals such as aluminum and stainless steel, ensuring long-term durability in harsh chemical environments.


  • Low Surface Tension - With a surface tension significantly lower than water, it spreads rapidly over surfaces. This property makes it highly effective as a key ingredient in defoamers, release agents, and cosmetic formulations.

applications
  • Fuser Oil for Copiers - KF-96-1000cs is widely used in the fuser units of copiers in office electronic equipment. Its high viscosity (1000 centistokes) and excellent thermal stability maintain lubrication properties even in high-temperature environments, reducing friction between the fuser roller and paper, preventing paper jams, and extending the life of mechanical components.


  • Fire Retardation for Computer Housings - KF-96-1000cs can be applied as a flame retardant additive to the plastic or metal materials of computer and server housings. Its high flash point and high-temperature resistance inhibit the spread of combustion and form a protective barrier against oxygen in the event of a fire.


  • Transformer Oil - In transformers in the energy industry, KF-96-1000cs serves as an insulating and cooling medium. Its high dielectric strength and thermal conductivity effectively isolate internal high-voltage components and dissipate heat generated during operation.


  • Viscous Coupling Oil - In vehicle transmission systems, KF-96-1000cs serves as the transmission medium of viscous couplings, transmitting torque through shear forces. Its viscosity stability ensures consistent transmission efficiency across a wide range of temperatures (-40°C to 200°C), preventing slippage and overheating.


  • Breaker Insulation Oil - In circuit breakers used in power distribution, KF-96-1000cs acts as an insulating oil to prevent arcing. Its high breakdown voltage (typically exceeding 35kV) and self-healing properties ensure rapid recovery of insulation after an arc, ensuring equipment safety.
